Description:

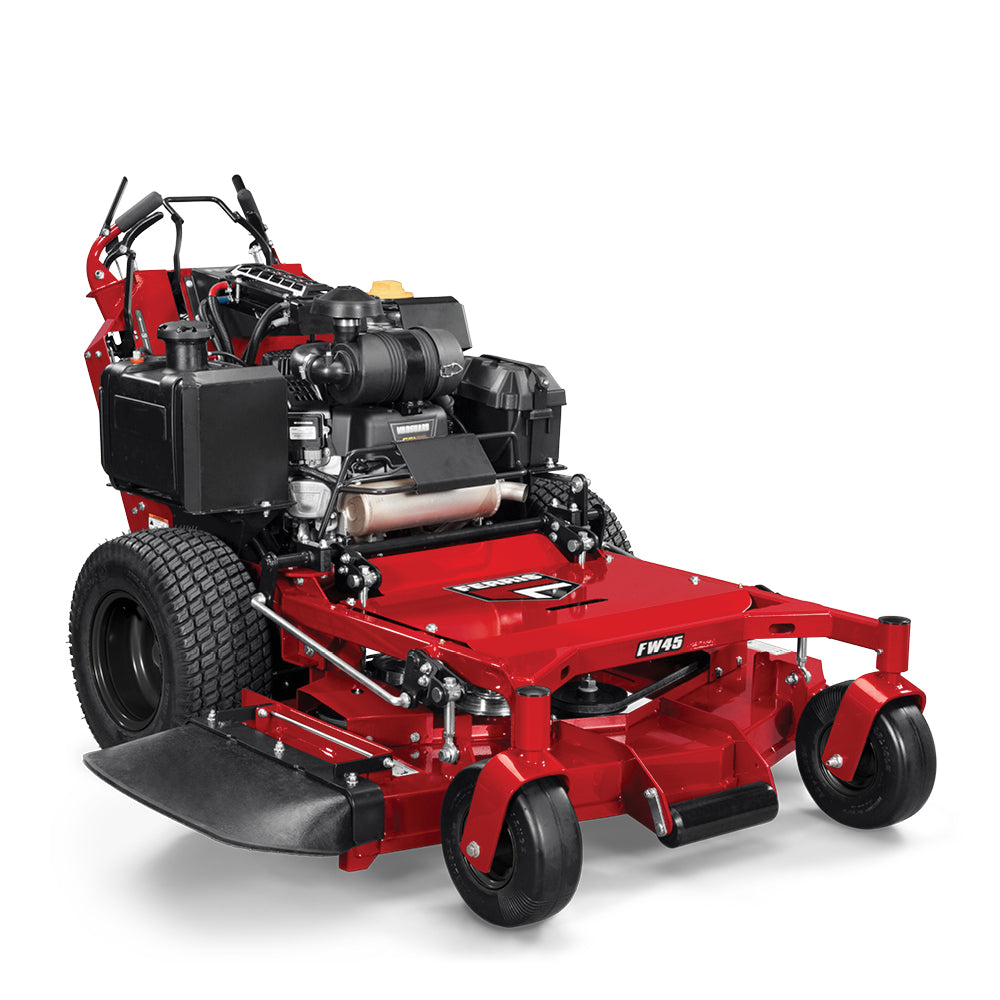

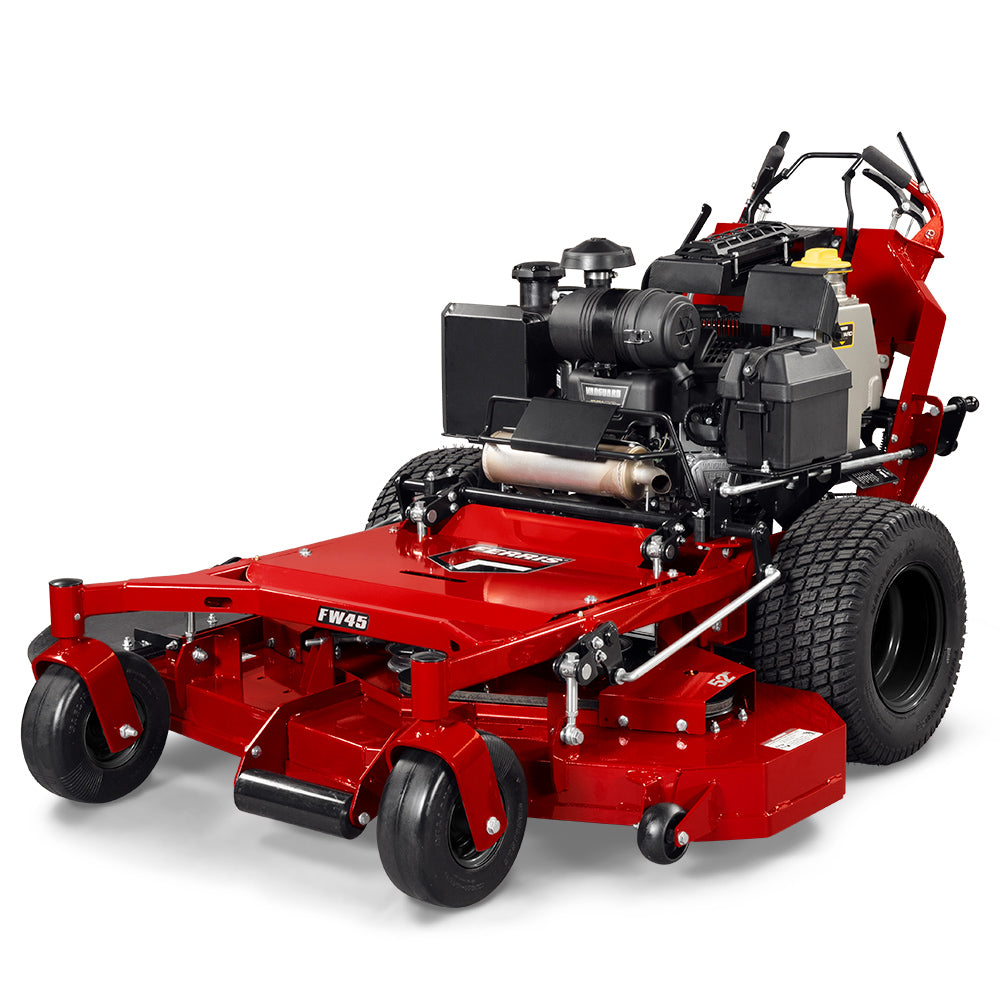

The FW45 is engineered for performance, productivity, and comfort. The three available deck sizes allow for maneuverability while engine options provide the power a commercial walk mower needs. Pairing comfort features like ergonomically designed controls with easy maintenance and durability mean the FW45 can handle whatever is thrown at it.

Specifications:

• Engine Brand: Vanguard™ 810 EFI with Oil Guard
• Engine Power Rating: 28 hp
• Displacement: 810 cc
• PTO: Electric
• Cylinders: 2
• Starter: Electric
• Fuel Type: Gasoline
• Fuel Tank Capacity: 5 gallons
• Deck Size: 52 inches
• Cutting Height: 1.5 - 5 inches
• Spindles: Cast-iron
• Deck Construction: Fabricated 10-gauge
• Transmission: Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers
• Drive Axles: 1 inch
• Caster Tires: 11 x 4-5 Flat-free
• Drive Tires: 20 x 8-10
• Ground Speed-Fwd: 0-7 mph
• Ground Speed-Rev: 0-3 mph
• Overall Length: 75 inches
• Overall Width: 67 inches (Deflector Down), 57 inches (Deflector Up)
• Dry Weight: 814 lbs
• Seat: N/A
• Control Type: CC™ Centralized Control
• Instrumentation: Dual-function hour meter, speed indicator
• Parking Brake/Safety Circuit: Hand operated internal transaxle brake
• Safety Group/Controls: Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls)
• Warranty (Engine): 3-Year limited manufacturer's warranty
• Warranty (Balance of Machine): 2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies; see operator's manual for details.
